Insulating Mats
Insulating Mats
Electrical insulating mats, also known as electrical safety mats, are designed to provide protection from electric shocks while working in or around high-voltage equipment. They protect against potentially fatal shocks generated by high-voltage equipment by offering high resistance, which forces electrical charges to choose the path of the least resistance.
Features
- IEC 61111: 2009 – Class0: tested at 10KV with an proof voltage of 0.5KV
- IEC 61111: 2009 – Class1: tested at 20KV with an proof voltage of 10KV
- IEC 61111: 2009 – Class2: tested at 30KV with an proof voltage of 20KV.
- IEC 61111: 2009 – Class3: tested at 40KV with an proof voltage of 30KV
- IEC 61111: 2009 – Class4: tested at 50KV with an proof voltage of 40KV.
- Certified for Class 2 and Class 3
Details
Dimension
Item
SIZE
Insulating Mats
Thickness
2.0mm ~ 10mm
Width
910mm ~ 1200mm
Length
10M ~ 20M
Color
Black / Grey / Other
Surface

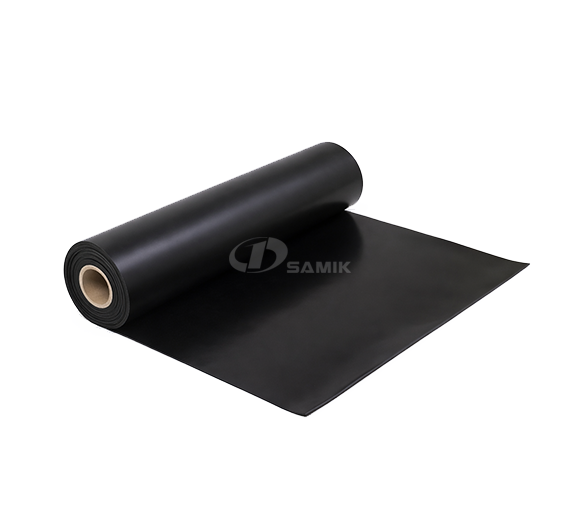

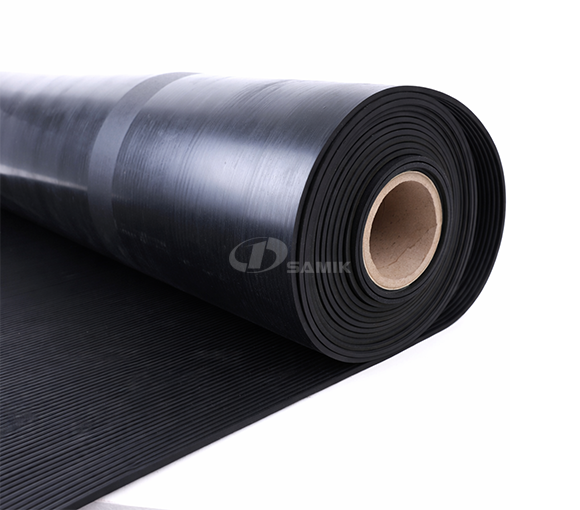

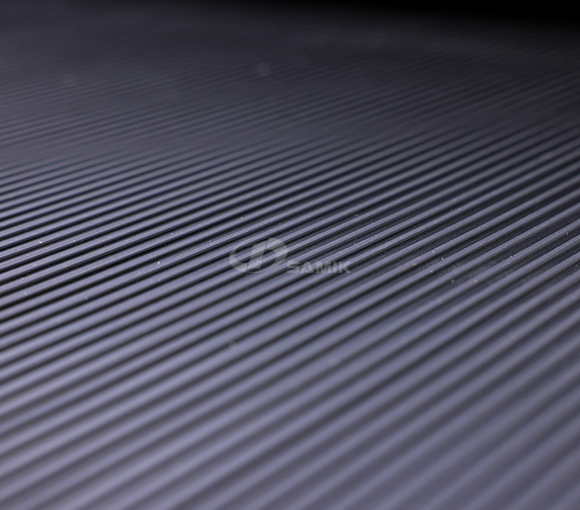

Plain, Ribbed
(Plain Surface : minimum 2.0mm, Ribbed Surface : minimum 2.5 mm)
Function

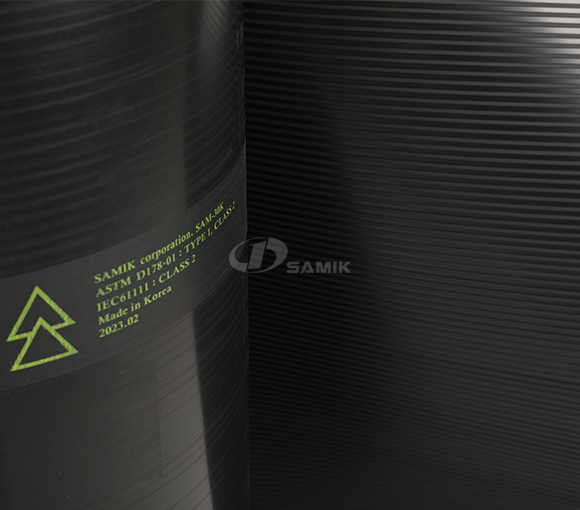

- Complies with IEC 61111: 2009 Class 2, Class3 international standard
- Compliance with ASTM D178 regulations
- Patent No.10-1458046: Electrical insulating mat and its manufacturing method
Application

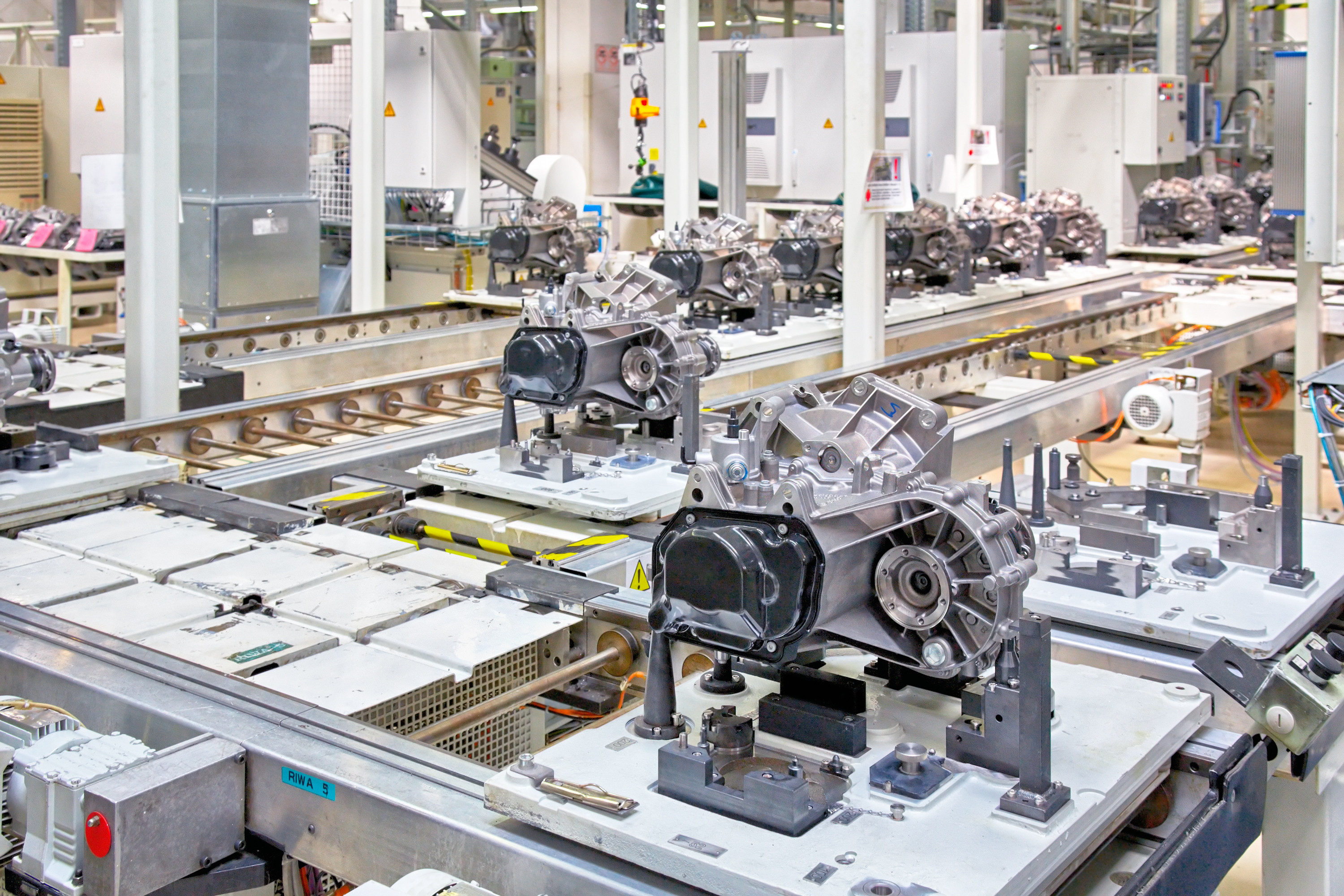

Ships and factory where electrical systems are in operation

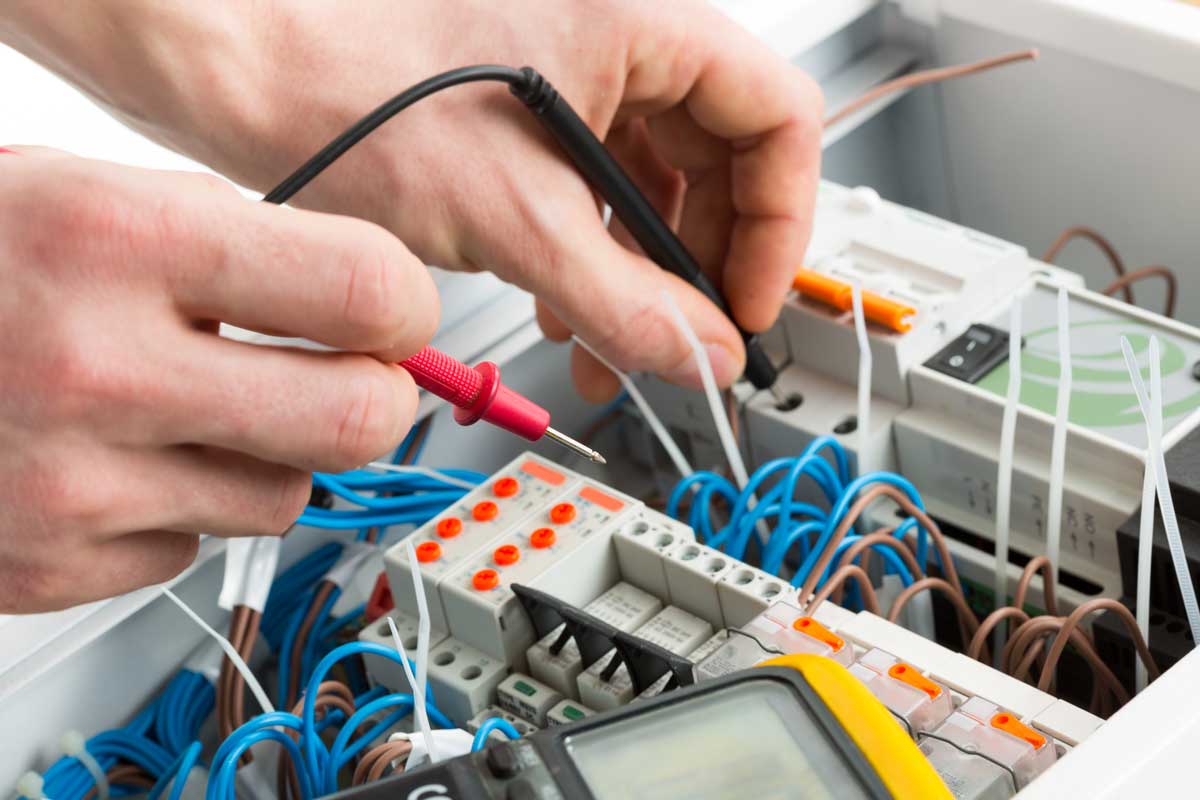

Fuse boxes / Switchboards

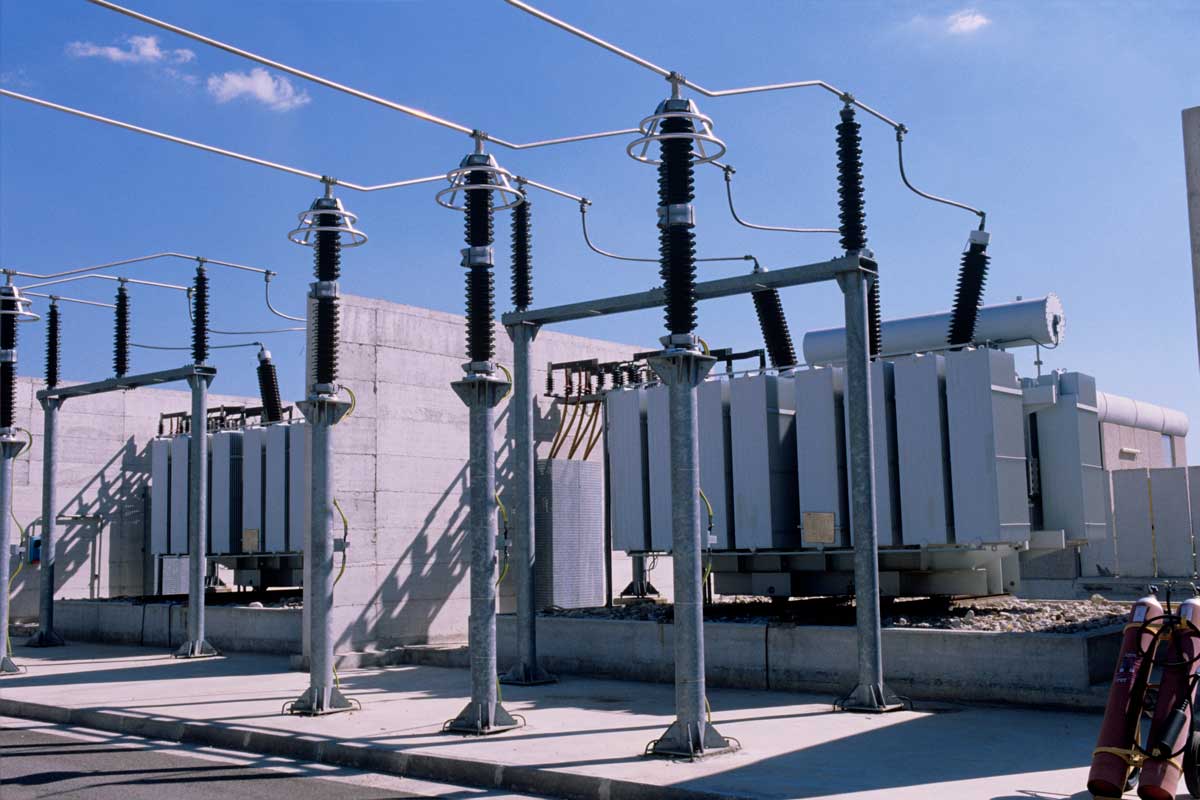

Electrical substations / Other high voltage work areas
