ESD Table Rubber Mats

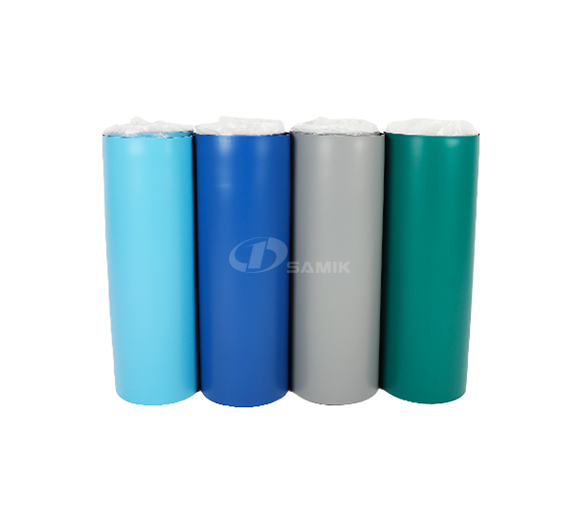

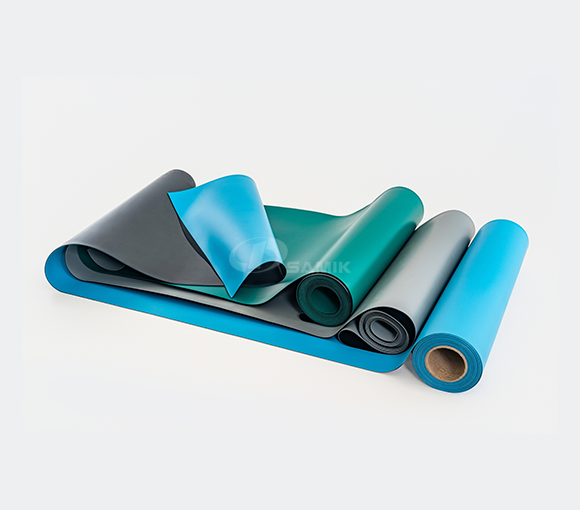

ESD Table Rubber Mats

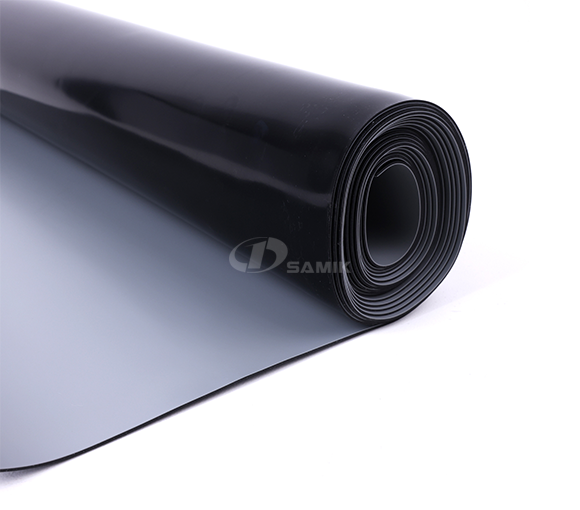

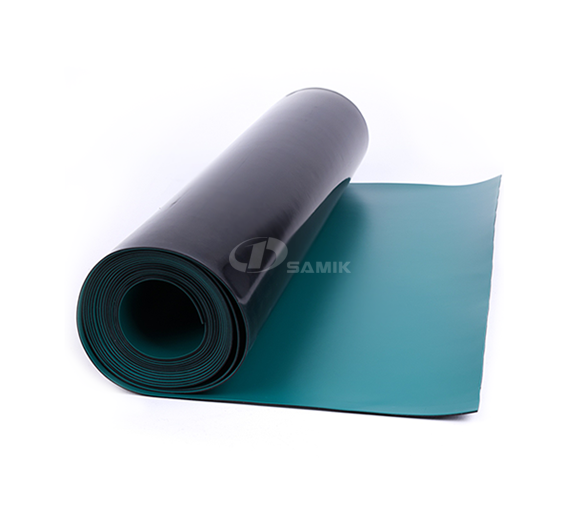

ESD rubber mats, also known as conductive mats, are designed to protect sensitive electronic components and devices from electrostatic discharge. it can be used on both tables and floors. Highly durable for long-term use, it has been developed for a wide range of industrial workplaces.

Features

  • Single-layer and Two-layer structures control the discharge rate to remove static charge within 1 seconds.
  • The electrostatic layer absorbs and disperses static electricity from workers and equipment, while the conductive layer safely channels it to the ground, quickly eliminating static and maintaining a safe work environment.

Details

Dimension

Item
SIZE
ESD Table Rubber Mats
Thickness
1.5mm ~ 3.0mm
Width
600mm ~ 1200mm
Length
10M ~ 30M

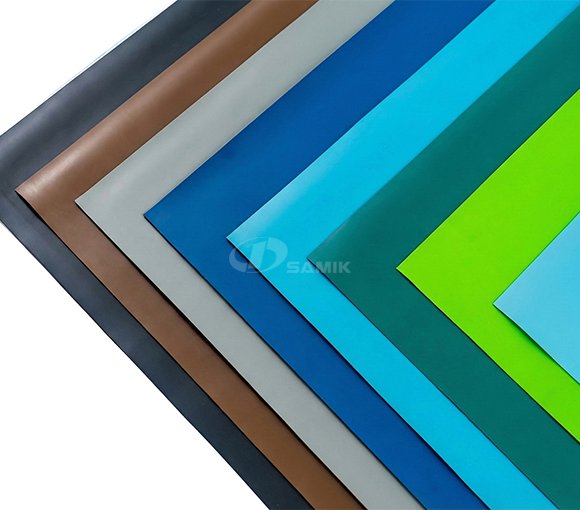

Color
Black / Green / Grey / Blue / Ivory / Browm
※ Customizable Colors Available
Surface Type
Dull Type, Shiny Type, Textured
Function
  • Color Layer : 107~8Ω → Static Dissipative
  • Black Layer : 104Ω → Conductive
  • Static Dissipative + Conductive structure
  • All Conductive
Options
  • Halogen-Free
  • Fire retardant function
  • Three-Layer
  • Textured : Single-sided / Double-sided
Structure

Single-sided

Double-sided

Application

Semiconductor manufacturing lines

Chemical laboratories

Electronic switching center / laboratories

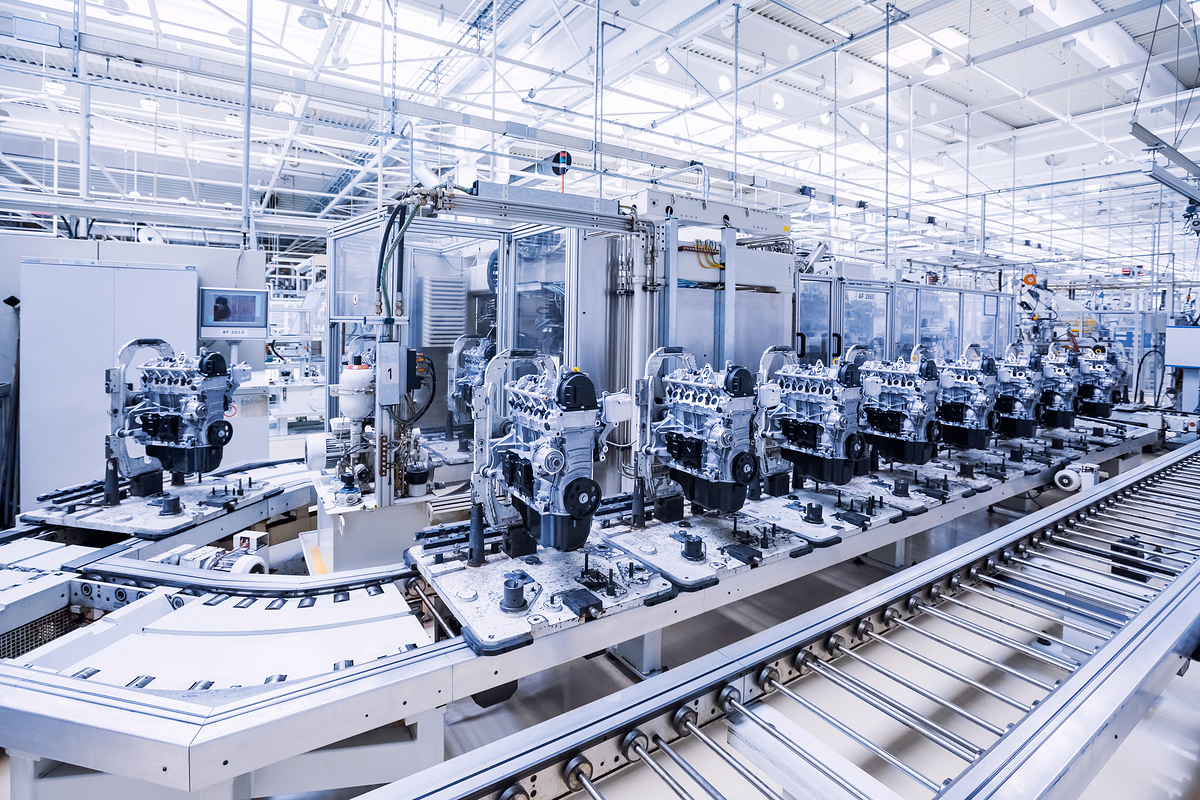

Electrical and electronic equipment production lines

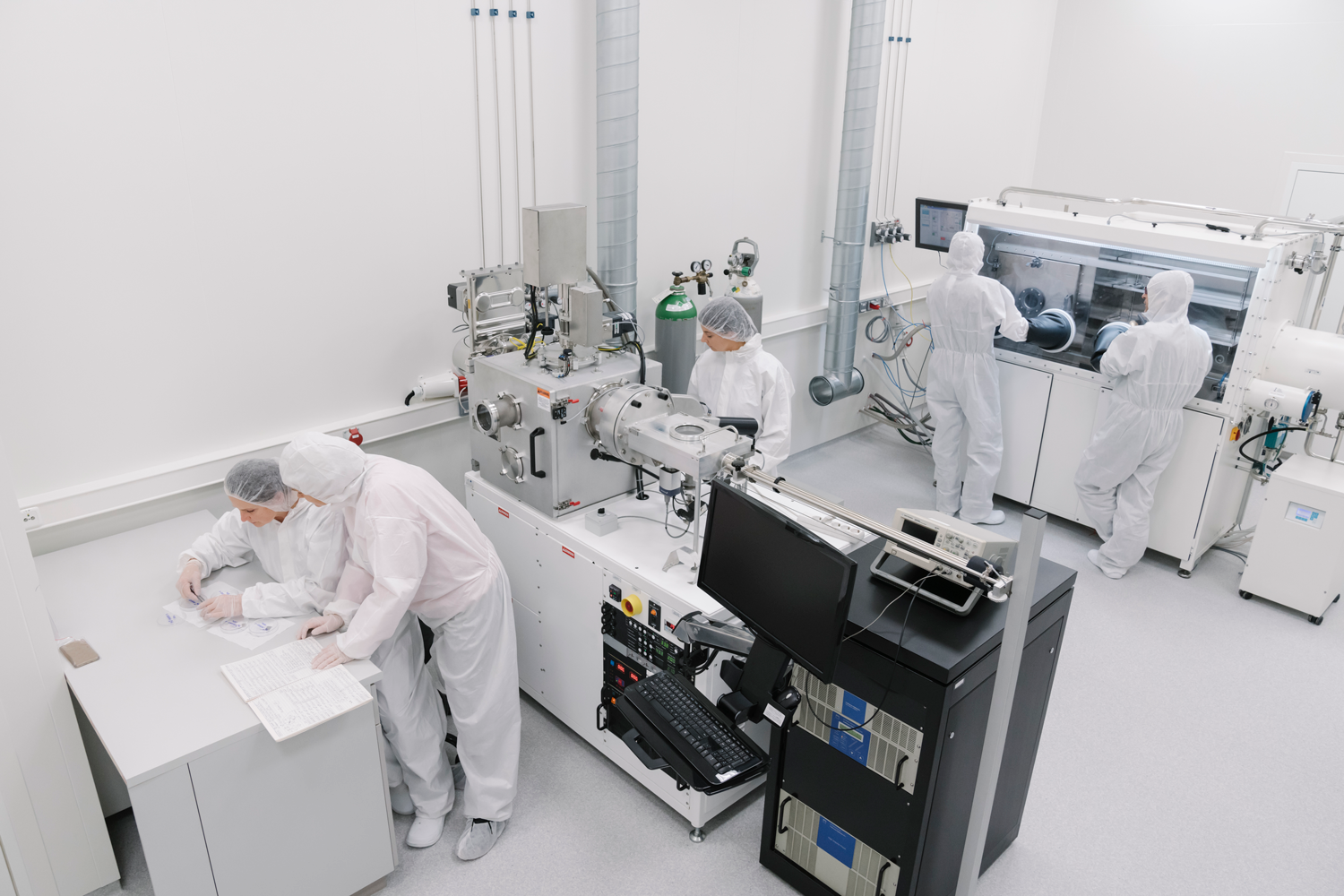

Cleanroom operation

Hospital
